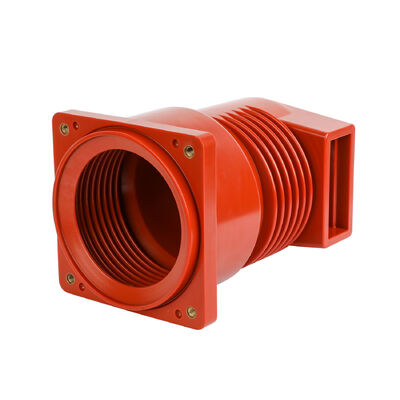

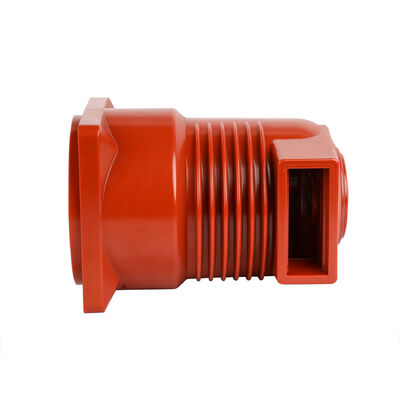

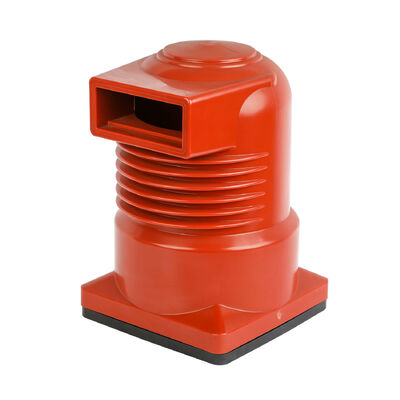

24kV 3150A-4000A Epoxy Resin V.T Spout Bushing Insulator in Medium-Voltage Cabinet

  • 24kV 3150A-4000A Epoxy Resin V.T Spout Bushing Insulator in Medium-Voltage Cabinet
  • 24kV 3150A-4000A Epoxy Resin V.T Spout Bushing Insulator in Medium-Voltage Cabinet
  • 24kV 3150A-4000A Epoxy Resin V.T Spout Bushing Insulator in Medium-Voltage Cabinet
  • 24kV 3150A-4000A Epoxy Resin V.T Spout Bushing Insulator in Medium-Voltage Cabinet
Lieu d'origine Wenzhou
Nom de marque QIUPU
Certification IEC
Numéro de modèle CHN3-24kV-252/3150A-4000A
Quantité de commande min 100 pièces
Détails d'emballage Cartons
Délai de livraison 7 jours
Conditions de paiement T/T, Western Union
Capacité d'approvisionnement 100000 pièces/mois
Détails sur le produit
Matériel Résine époxy , Résine de coulée Couleur Rouge/Marron
Hauteur 375 mm Distance de fluage 480 mm
Tension nominale 24KV Fréquence Tension 68 kV
Résistance à la flexion 10KN
Mettre en évidence

24kV epoxy resin insulator

,

3150A-4000A V.T spout bushing

,

medium-voltage cabinet insulator
Laisser un message
Description de produit

24kV 3150A-4000A Epoxy Resin V.T Spout Bushing Insulator in Medium-Voltage Cabinet



Description:





The contact box is the pressure gel molding structure of epoxy resin APG process, which is used for various kinds of handcart type switchgear, acting as insulation isolation and connection transition.The contact box is formalised by ecoxy with APG technologies, it is used for integration and conversion of Various switch trucks. The rated voltage sulfoxide according to the wall-piercing casing shall not be lower than the rated voltage of the grid in which it is located. When there is ice and snow, 3 ~ 20kV outside the wall casing should be selected a higher voltage products. For 3 ~ 6 kV, it is also possible to adopt products that increase the two-stage voltage.



Specification:



Item Technical data
Rated voltage (KV) 3.6 7.2 12 24 40.5
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV) 25 32 42 68 100
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV) 40 60 75 125 185
Local discharge (pc) ≤10
Dispute bend (N) ≥1000




24kV 3150A-4000A Epoxy Resin V.T Spout Bushing Insulator in Medium-Voltage Cabinet 0





We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components .

24kV 3150A-4000A Epoxy Resin V.T Spout Bushing Insulator in Medium-Voltage Cabinet 124kV 3150A-4000A Epoxy Resin V.T Spout Bushing Insulator in Medium-Voltage Cabinet 2
