36kv Armored Removable AC Metal-Enclosed Indoor Switchgear with Circuit Breaker
Contactez-moi pour des aperçus gratuits et des bons.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.
xDétails sur le produit
| Nom du produit | Équipement de commutation fixe MV | Tension nominale | 36kV |
|---|---|---|---|
| Fréquence de taux | 50Hz | Courant principal évalué de barre omnibus | 630,1250,1600,2000,2500,3150A,4000A |
| Courant à court terme de tenue (4S) | 20,25,31.5, 40 KILOVOLTS | Courant maximal de tenue (crête.) | 50,63,80,100 KILOVOLTS |
| Le short évalué lâchent actuel | 20,25,31.5, 40 KILOVOLTS | Court-circuit évalué ouvert et coupe (crête) | 50,63,80,100 KILOVOLTS |
Description de produit

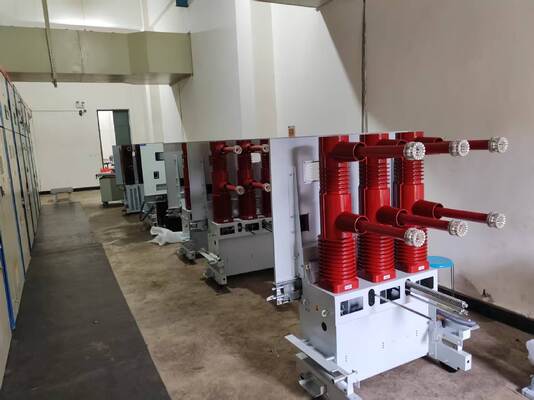

36kv Armored Removable AC Metal-Enclosed Indoor Switchgear with Circuit Breaker
MV Fixed Switchgear General Introduction:
XGN66-12 box-type fixed metal enclosed switchgear is our factory to design, research and development from a new generation of complete sets of high-voltage electrical products, switchgear suitable for 3,6-12kv three-phase AC 50Hz single bus section of the indoor sets of devices As receiving and distribution of electric energy use, and has the circuit control, protection and detection capabilities.
The products absorb advanced foreign technology, in view of the existing switchgear in the operation of similar high accident rate and the large volume of such problems Designed and developed from. It is small, only the common switch cabinet, the circuit breaker with high reliability, good performance, five anti-interlock, reliable, and simple.
MV Fixed Switchgear Environmental Conditions:
1). use the maximum temperature does not exceed 40 degrees, the minimum Not more than -25 degrees
2). relative humidity: daily average of not more than 95%, the monthly average of no more than 90% of the altitude does not exceed 1000m (over time can consult the manufacturer)
3). no fire, explosion, heavy pollution, chemical corrosion and severe Shock sites.
MV Fixed Switchgear Technical parameters:
| Items | Unit | parameter | ||
| Rate voltage | kV | 12 | ||
| Rate frequency | Hz | 50 | ||
| Rated main bus bar current | A | 630 ,1250,1600,2000,2500 ,3150 | ||
| Rated branching bus bar current | A | 630 ,1250,1600,2000,2500 ,3150 | ||
| Short-time withstand current(4S) | kV | 20,25,31.5,40 | ||
| Peak withstand current(peak.) | kV | 50,63,80,100 | ||
| Rated short drop out current | kV | 20,25,31.5,40 | ||
| Rated short circuit open and cut(Peak) | kV | 50,63,80,100 | ||
| Rated insulation level | 1min power frequency withstand voltage |
ph-ph,ph-ground | kV | 25,30,42 |
| breaker gap | kV | 27,34,48 | ||
| Rated lighting impulse withstand voltage(Peak) | ph-ph,ph-ground | kV | 40,60,75 | |
| breaker gap | kV |
46,70,85 |
||
Switchgear Structure:

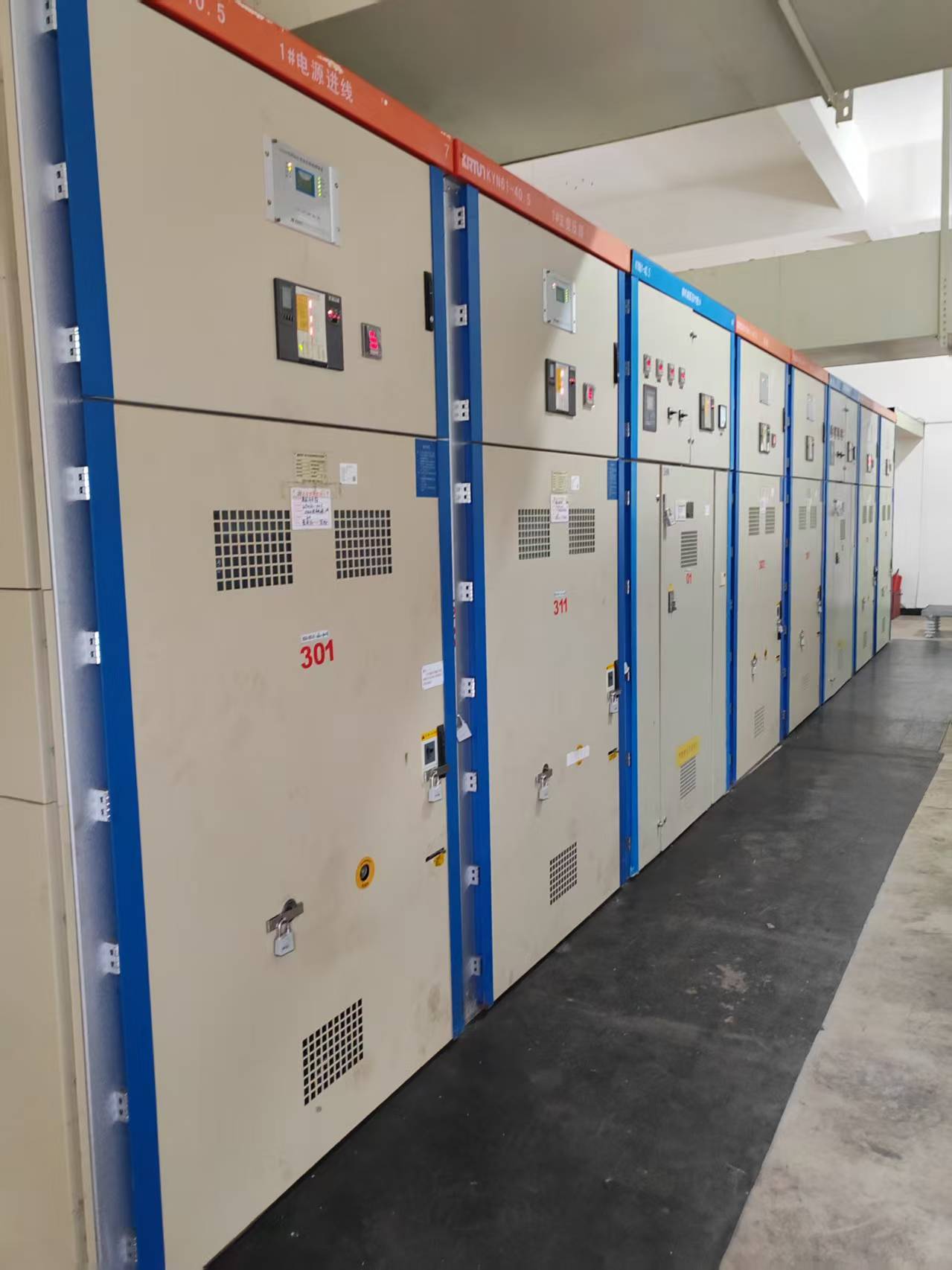

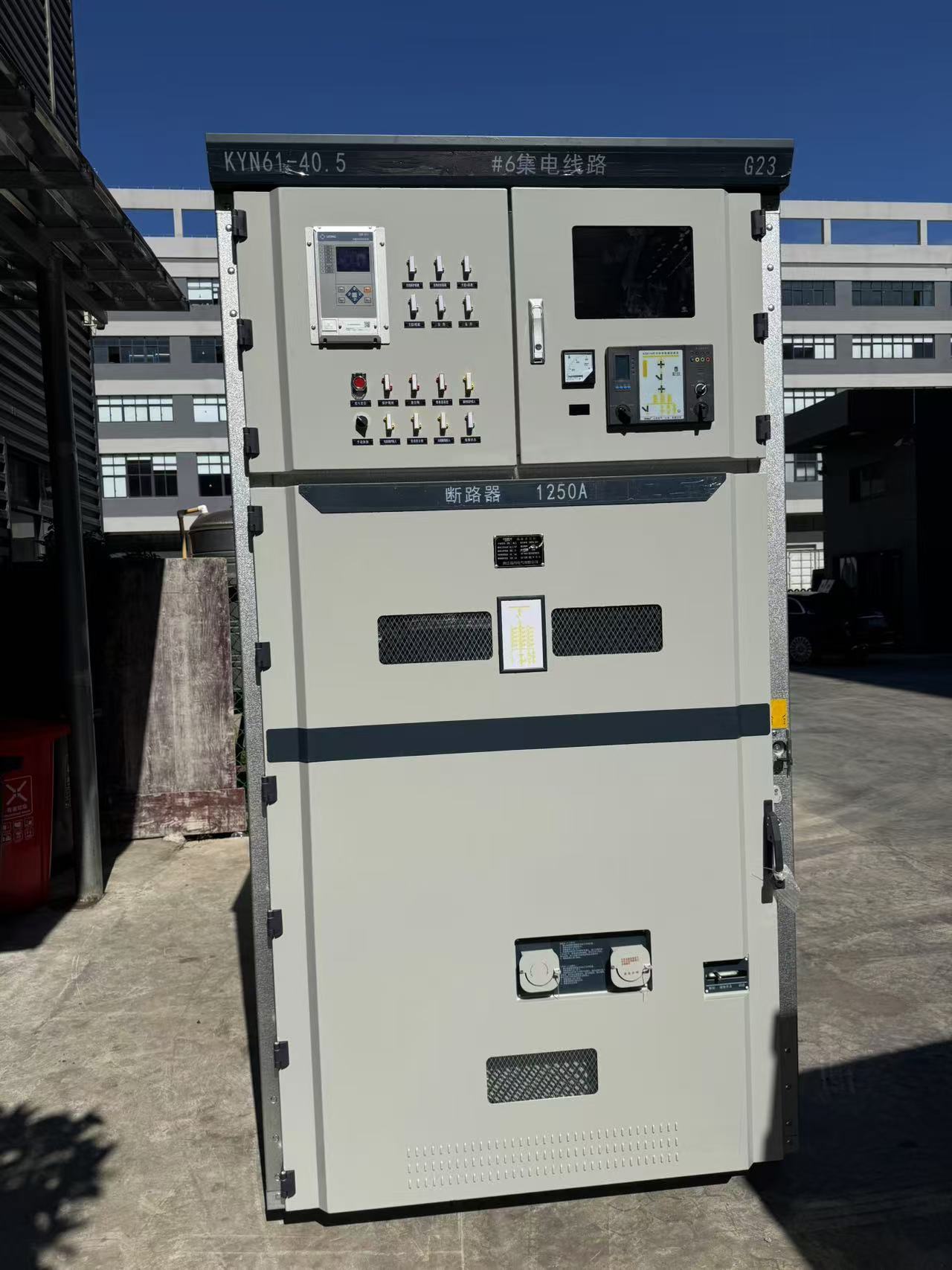

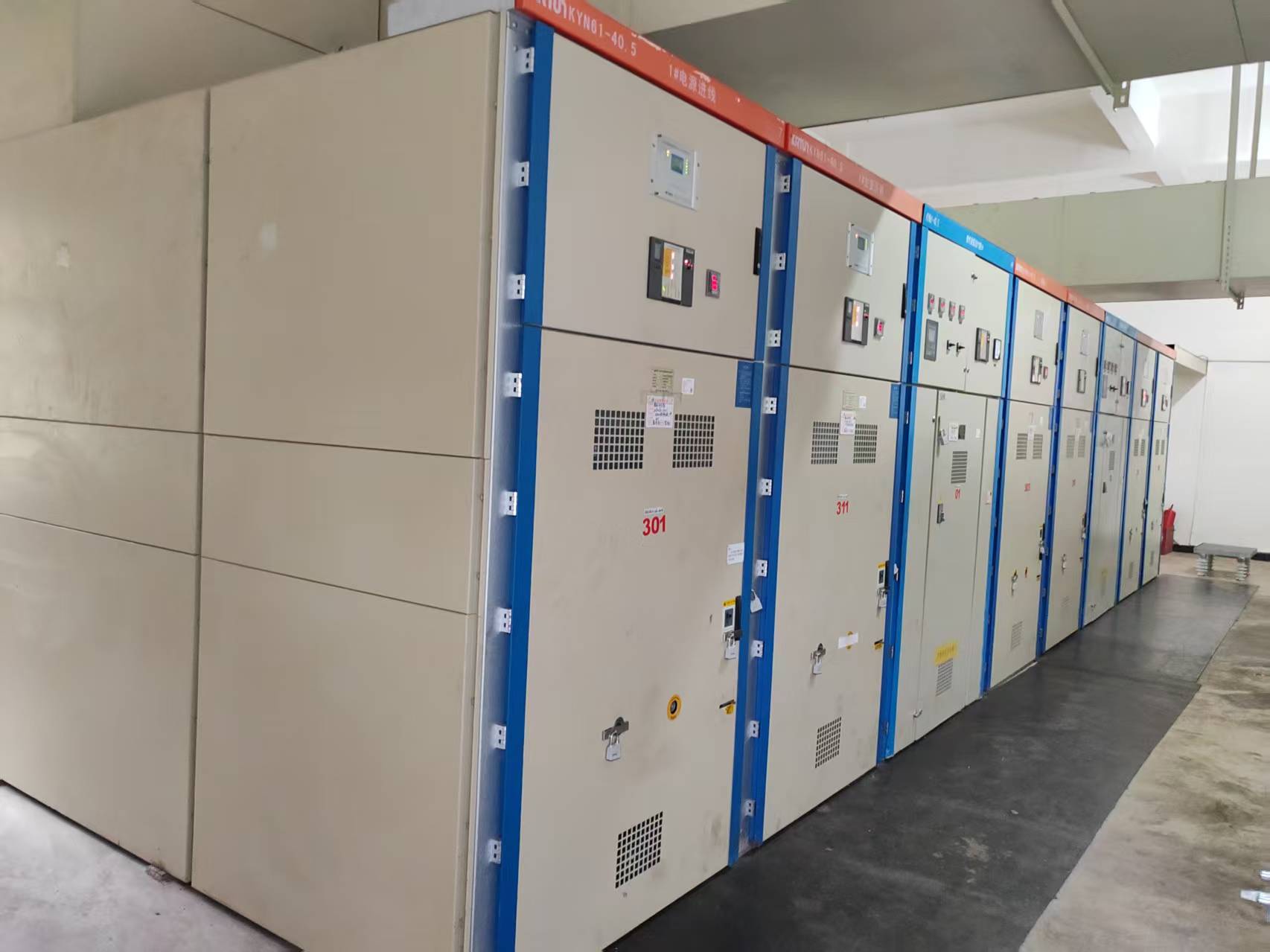

1. Switchgear is composed of cubicle and removable parts (so called trolley). The cubicle is separated into several functional compartments by metal sheet, including busbar compartment, circuit breaker compartment, cable compartment and low voltage

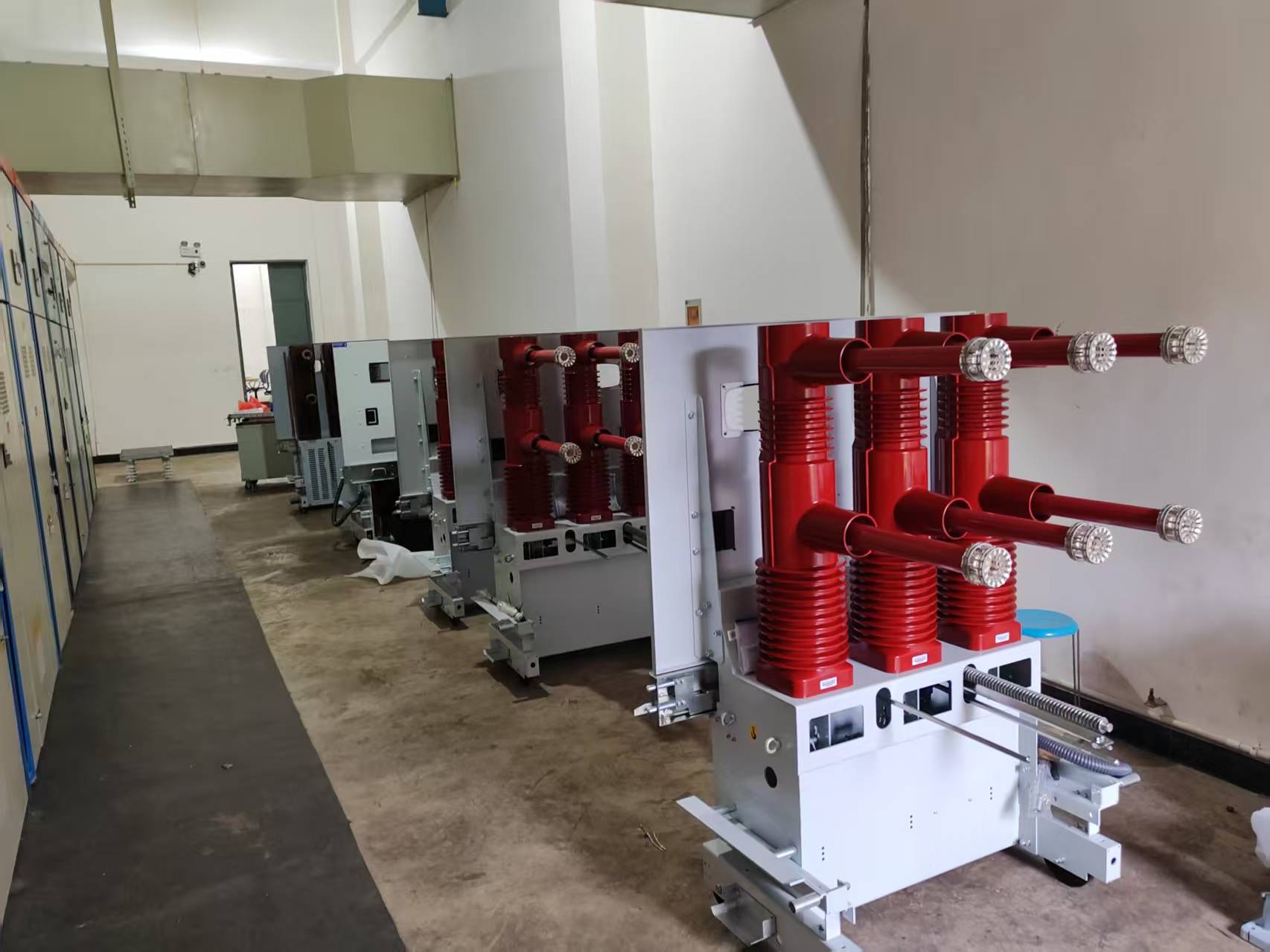

2. Switchgear removable parts can be equipped with VCB trolley, voltage transformer trolley, lightning arrester trolley and fuse trolley.
3. Pressure relief devices are installed above trolley compartment, busbar compartment and cable compartment. Special sealing ring on the door seals the panel door.
4. In case of faults inside the compartments resulting in arc, the pressure is going up inside the switchgear and the pressure relief equipped on the top will open automatically, to release pressure and high temperature gas. In this way, it can ensure the safety of operating staff and the switchgear.
About Us
Wenzhou Qiupu Electric Power Co., Ltd. is located in Yueqing Economic Development Zone, Zhejiang Province. It is a high-tech enterprise specializing in the research and development, production and sales of electric power products such as circuit breakers, transformers, power distribution switches and high and low voltage electrics.
Our products are widely used in financial, communications, municipal, transportation, power, construction, aerospace, industrial control and other important areas, has won the majority of users praise and signed a long-term cooperation agreement.
FAQ
Q1: Is OEM/ODM available?
A1: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements.
Q2: What's your MOQ?
A2: One Set.
Q3: How is the delivery time?
A3: It depends your order quantity and it normally takes about 20-30 days.
Q4: How do you control the quality?
A4: We have QC team comply with TQM to ensure the quality. Each step is in compliance to the standards. At the same time, we will take photos and shoot video for you if you need.Every product will be fully assembled and carefully tested before packing and shipping.
Q5: How long is the warranty?
A5: Within one year from the sale date, if there are any accessory problems, you just provide the photos of damaged accessory, then we will provide free accessory. According to the number of products, we will provide easily damaged accessories for free. We also can provide technical support if you need.
